Do you have shelves of hardware at your place that seemingly came out of nowhere with parts looking for a new loving home? I'll be listing items here that may be of interest to you in your R&D or Project Work. Drop us an enquiry if you see anything that spikes your interest!
B&R / 8GP40-060–010S2V3 / PLANETARY GEARBOX
8G Planetary Gearboxes System Overview
B&R / 8GP40-060–010S2V3 / PLANETARY GEARBOX
Current Stock
Currently 2 on the shelf.
B&R / 8GA40-080–005S2V3 / PLANETARY GEARBOX
B&R , 8GP40-080--020S2V3 , PLANETARY GEARBOX
B&R / 8GA40-080–005S2V3 / PLANETARY GEARBOX
Part number: 8GA40-080hh005klmm
Description: Angular PG, i = 005, 1-stage, IP54. Keyed Shaft.
B&R / 8GP40-080–020S2V3 / PLANETARY GEARBOX
B&R , 8GP40-080--020S2V3 , PLANETARY GEARBOX
8G Planetary Gearboxes System Overview
Part number: 8GP40-080hh020klmm
Description: Coaxial PG, i = 020, 2-stage, IP54
B&R / 8GP40-080–020S2V3 / PLANETARY GEARBOX
Number of Gear Stages - 2
| Max. radial force Frmax [N] for 30,000 h | 650 |
| Max. radial force Frmax [N] for 20,000 h | 750 |
| Max. axial force Famax [N] for 30,000 h | 900 |
| Max. axial force Famax [N] for 20,000 h | 1000 |
| Operating noise LPA [dB(A)] | 60 |
| Efficiency at full load ŋ [%] | 94 |
| Min. operating temperature BTempmin [°C] | -25 |
| Max. operating temperature BTempmax [°C] | 90 |
| Mounting orientation | Any |
| Degree of protection | IP54 |
| Weight m [kg] | 2.6 |
| Moment of inertia J1 [kgcm2] | 0.44 |
B&R / 4P3040.01-490 / PP41
B&R , 4P3040.01-490 , PP41 , Rev. H0
Part number: 4P3040.01-490
Description: Power Panel PP41 5.7 inch QVGA monochrome LCD display, 8 soft keys and 32 function keys, system-compatible 2003 central processing unit, 700 kB SRAM, 1.4 MB FlashPROM, 1 PCMCIA slot, 1 RS232 interface, 1 CAN interface: electrically isolated, network-capable, 6 slots for adapter modules, 10 digital inputs 24 VDC, 8 digital outputs 24 VDC, 0.4 A, IP65 protection (front), 205 x 220 mm (W x H), 24 VDC. Order TB712 terminal blocks separately!
Required Software -
Latest compatible version of B&R Automation Studio to communicate with this Power Panel is AS4.12.
B&R / 4P3040.01-490 / PP41
Unused Price & Typical Topology
Prices appear to range between £871 for this unit secondhand and used to £2193 for this unit unused.
In a distributed system, two or more Power Panel devices (PP21, PP41) are connected to each other over a CAN bus. Control programs run on each Power Panel. The sensors and actuators are connected to the integrated and insertable inputs and outputs as well as the remote CAN bus stations.
B&R / 4PP015.0420-01 / PP15
B&R , 4PP015.0420-01 , PP15, Rev. D1
Part number: 4PP015.0420-01
Description: Power Panel, 24 VDC, 153 x 120 mm, LCD display, 4 x 20 characters, backlight, 16 keys, 300 kB SRAM, 1024 kB FlashPROM, 1 RS232 interface, 1 CAN bus interface, network-capable, 16 digital inputs, 24 VDC, sink/source, 2 event counters or 1 incremental encoder or 2x gate/period measurement, 16 digital outputs, 24 VDC, 0.5 A source, IP65 protection (front), order 2x TB718 and 1x TB103 terminal blocks separately!
Required Software -
Latest compatible version of B&R Automation Studio to communicate with this Power Panel is AS4.12.
B&R / 4PP015.0420-01 / PP15
User's Manual & Dimensions
In a distributed system, two or more Power Panel devices (PP15, PP35) are connected to each other over a CAN bus. Control programs run on each Power Panel. The sensors and actuators are connected to the integrated inputs and outputs as well as the remote CAN bus stations.
Prices appear to range between £656 to £787 for this unit second-hand and refurbished.
B&R / CONTROLLER 5C2001.01 / PROVIT
B&R CONTROLLER, 5C2001.01, PROVIT , Rev. C0
Part number: 5C2001.01
Description: Controller 486DX2-66; FPROM; SRAM; CF Processor 80486DX2-66 MHz, 8 MB DRAM, 256 kB SRAM, 2 MB FPROM, Compact Flash Slot (Type 1), 2 serial interfaces (16 Byte FIFO), 1 parallel interface, CAN bus interface (electrically isolated), Dallas Hardware Security Key, battery packed real-time clock. Connection for flat display, monitor, PS/2 AT keyboard, Panelware keypad modules and external diskette drive 3.5 inch (88.9 mm) 1.44 MB, 24 V DC supply voltage.
1. PC Card / PCMCIA I, II, III
2. Standard LPT1 (bidirectional)
3. Floppy Interface
4. COM2 Interface
5. COM3 / CAN Interface
6. COM1 Interface
B&R / CONTROLLER 5C2001.01 / PROVIT
Compact Overview Continued
1. Fuse Holder
2. Dip Switch 1
3. Fan
4. Dip Switch 2
5. Reset Button
6. Flat Display Connector
7. Ethernet VGA Monitor
8. Panelware
9. Compact Flash Slot
B&R / CONTROLLER 5C2001.01 / PROVIT
1. Status LEDs
2. Power Supply
B&R / CONTROLLER 5C2001.01 / PROVIT
Data Sheets, Mounting Instructions & Automation Studio
Mounting -
• Controllers with a fan are required to be mounted with the fan facing up.
• In order to guarantee sufficient air circulation, allow a distance of at least 10 cm between the fans and all other objects.
• The controller can be mounted at a maximal angle of 45°.
Required Software -
Runs DOS or Windows.
Prices appear to range between £1384 to £1650 for this unit second-hand and refurbished.
B&R / 5D2210.01 / PROVIT 2200
B&R, 5D2210.01, PROVIT 2200 , Rev. C0
Part number: 5D2210.01
Description: Panel TFT C; VGA; 10.4 in; T. Display Unit with color TFT-display, 640 x 480 pixel resolution, 10.4 inch (264 mm) diagonal and integrated touch screen (resistive). IP65 protection (from front). Comes complete with accessories (cable). Touch screen driver must be ordered separately (5S0000.01-090). Outline dimensions 310 x 236 x 45 mm (WxHxD).
Required Software -
Runs DOS or Windows.
The connection from the display unit to the controller is made with a ribbon cable. The connection from the touch screen to the controller is made with the cable that is delivered with the touch screen. The cable is connected to COM1 on the controller.
B&R / 5D2210.01 / PROVIT 2200
User's Manual & Dimensions
Prices appear to range between £1129 to £1650 for this unit second-hand and refurbished.

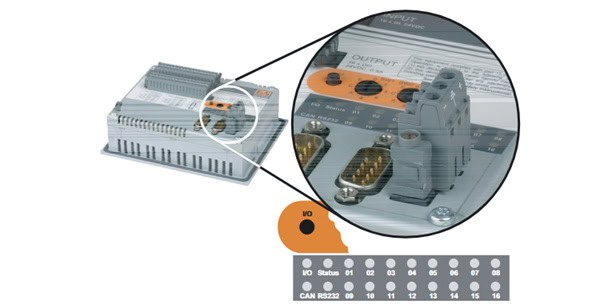

B&R / 4PP035.E300-36 / PP35
B&R , 4PP035.0300-01, PP35 , Rev. D0
Part number: 4PP035.0300-01
Description: Power Panel, 24 VDC, 153 x 120 mm, LCD display, 160 x 80 pixels, 3 inch, backlight, 16 keys, 300 kB SRAM, 1024 kB FlashPROM, 1 RS232, 1 CAN interface network-capable, 16 digital inputs, 24 VDC, sink/source, 2 event counters or 1 incremental encoder or 2x gate/period measurement, 16 digital outputs, 24 VDC, 0.5 A source, IP65 protection (front), order 2x TB718, 1x TB103 terminal blocks separately!
Required Software -
Latest compatible version of B&R Automation Studio to 0communicate with this Power Panel is AS4.12.
Prices appear to range between £1,000 to £1,624 for this legacy and discontinued unit second-hand and refurbished depending on condition.
B&R / 4PP035.E300-36 / PP35

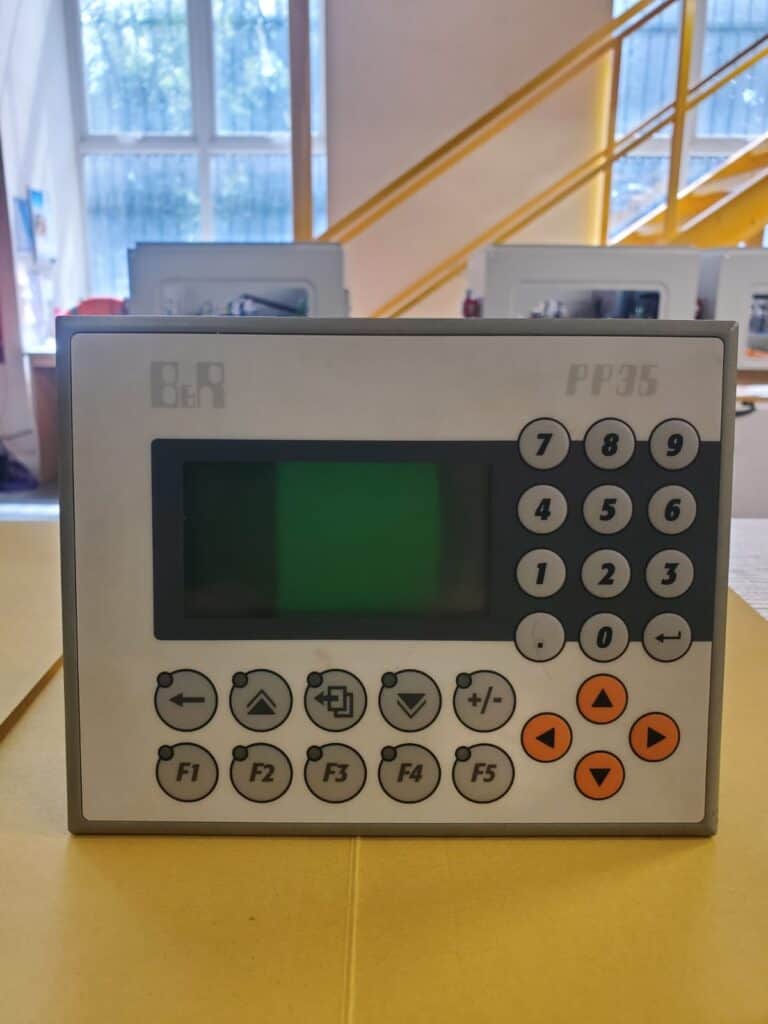

Wonderful Refurb of a PP35!
B&R / 4PP035.E300-36 / PP35
DATASHEETS
B&R offers the B&R Power Panel 15, 21, 35, and 41 for automation of small to midsize machines and systems. These Power Panels are a combination of operator panel and controller in one device. A 4 x 20 character text display, a 3-inch display with 160 x 80 pixels, or a ¼ VGA graphic displaycan be selected. Each Power Panel is equipped with a powerful PLC CPU including integrated digital or analog I/O. The series PP21 and PP41 panels have an additional six slots for B&R SYSTEM 2003 screw-in modules. An expansion module is offered for the Power Panel 41 which allows the operation of B&R SYSTEM 2005 interface module inserts. The visualization application is created using B&R Automation Studio™. B&R Automation Studio™ is used to program the CPU.
B&R / 4PP045.0571-062 / PP45
B&R, 4PP045.0571-062, PP45 , Rev. D0
Part number: 4PP045.0571-062
Description: Power Panel PP45 5.7" QVGA color LC display with touch screen (resistive), 10 touch-keys, 64 MB DRAM, 48 kB SRAM, CompactFlash slot, 1x ETH 10/100, 1x X2X Link, 2x USB, IP65 protection (from front), order program memory separately, order TB103 and TB704 terminal blocks separately.
Required Software -
Latest compatible version of B&R Automation Studio to communicate with this Power Panel is AS4.12.
B&R / 4PP045.0571-062 / PP45
USER'S MANUAL
Prices appear to range between £541 to £3,364 for this unit second-hand and refurbished.
B&R / 4PP045.0571-062 / PP45
DIMENSIONS

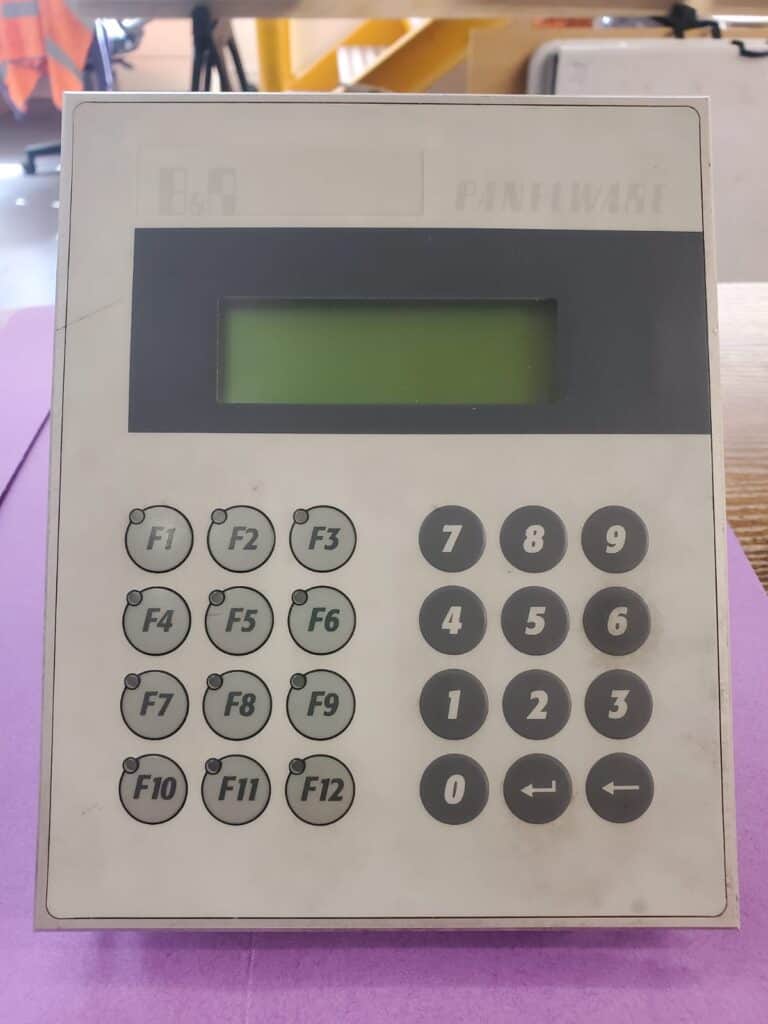

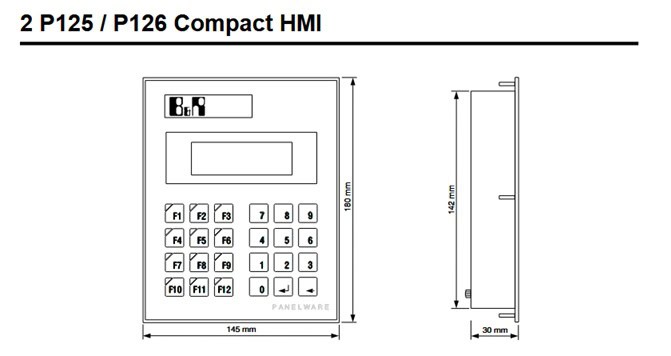

B&R / 4B1250.00-490 / PANELWARE
B&R, 4B1250.00-490, PANELWARE , Rev.C0
Part number: 4B1250.00-490
Description: PANELWARE compact HMI, white Intelligent HMI, 32 KB EEPROM LC display, 4 x 20 characters background lighting 12 numerical keys + 12 function keys 1 RS232 interface IP65 front protection.
Panelware is a standalone controller that will communicate with older legacy kit.
B&R / 4B1250.00-490 / PANELWARE

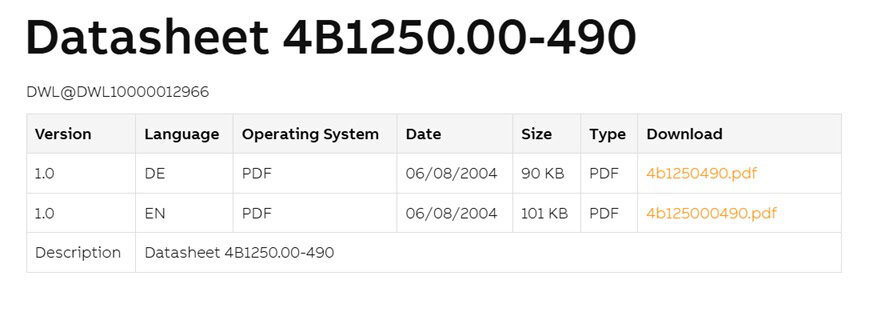

DATASHEETS
Interface: RS232 (not electrically isolated).
Control: Pictures created with PANELWARE Configuration Software (V1.71 and higher), application stored in Compact HMI (32 kBytes EEPROM, max. 250 pictures). Controlled using ESC sequences (no memory in the P121).
Supply: 5.2 VDC (min. 5.0 VDC, max. 5.5 VDC).
Keypad: 12 function keys with legend strips ,12 key number block.
Temperature Operating Storage: 0 to 50 °C (32 to 122 °F) -20 to 60 °C (-4 to 140 °F.
Relative Humidity Operating Storage: 10 to 90 % (non-condensing).
Shock: Conforms to IEC 60068-2-27, 15g equivalent, 150 m/sec2, 11 msec, 3 axes (pos and neg).
Vibration: Conforms to IEC 60068-2-6, 1g equivalent, 10-58 Hz; 0.075 mm, 58-150 Hz; 9.8m/sec2, 20 Cycles per axis.
Current Requirements: 340 mA at 5.2 VDC.
B&R / 4B1250.00-490 / PANELWARE
Resale Value
RS232 Interface: A 9 pin D-type male connector can be found on the back of the COMPACT MMI.
Attention: The panel is not electrically isolated. All interface signals refer to ground!
Supply Voltage: The panel is supplied through pins 4 and 5 (or 6 or 9) of the 9 pin D-type (M) connector.
The power supply must match the following specifications:
Voltage: typ. 5.2 V (min. 5 V, max. 5.5 V)
Current: 340 mA
Temperature Coefficient: max. 1 mV/°C
Ripple: max. 50 mVOperating Mode Switch (only P125):
This switch is only found on the COMPACT MMI P120 and not on the P121. Switching between "Teach Mode" and "Run Mode" is done with this switch.Teach Mode (Position 2)
In this mode of operation, a project created with the PANELWARE Configuration Soft-ware can be transferred from a PC to the P120. If the P120 is switched on in this mode of operation, the text "TEACH-MODE WAITING FOR DATA" is displayed on the display.Run Mode (Position 1)
If the P120 is switched on in this mode of operation, the project which has been downloaded to the panel is started.
Prices appear to range between £171 to £348 for this unit second-hand and depending on condition.
