Male Pins & Female Sockets

Plugs and Sockets, which enable the secure transmission of power, signal, and data, are composed of conductive contacts (male pins and female sockets) housed within insulated connectors (bodies).
These components are designed for specific applications, ranging from domestic appliances to industrial power systems.
  • Pin Contacts (Male): Protruding pins that fit into female receptacles.
  • Socket Contacts (Female): Recessed, spring-loaded contacts that receive the male pins.
  • Crimp Contacts: Used for reliable, solder-less connections.

Contacts, Connectors, and Crimps

Contact Materials (The Conductive Elements)

Contacts are the core conductive elements, typically made of brass or phosphor bronze, and plated to improve conductivity and resist corrosion.

  • Copper/Brass: Commonly used for base conductivity, often tin-plated for cost-effective, durable connections.
  • Silver/Silver-Nickel: Used in industrial, high-temperature, or high-current, demanding environments for optimal, long-lasting conductivity.

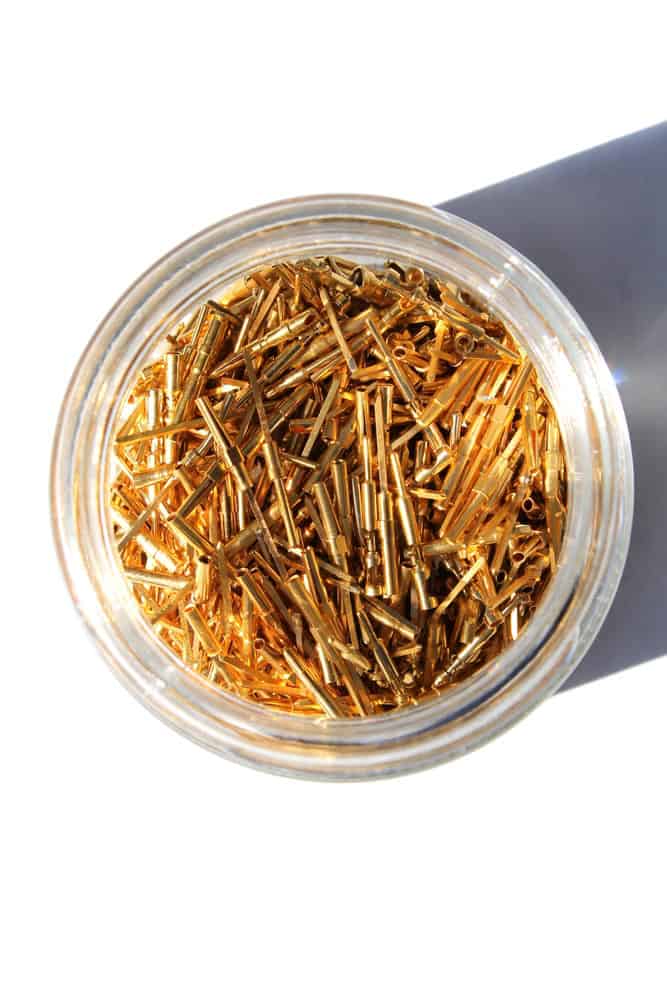

  • Gold Plating: Often used in sensitive electronics or data applications for superior oxidation resistance.

The following slides will show you some examples of both the Male & Female Contacts, as well as Silver & Gold plated Contacts.



Contacts, Connectors, and Crimps

CDFD 0.5

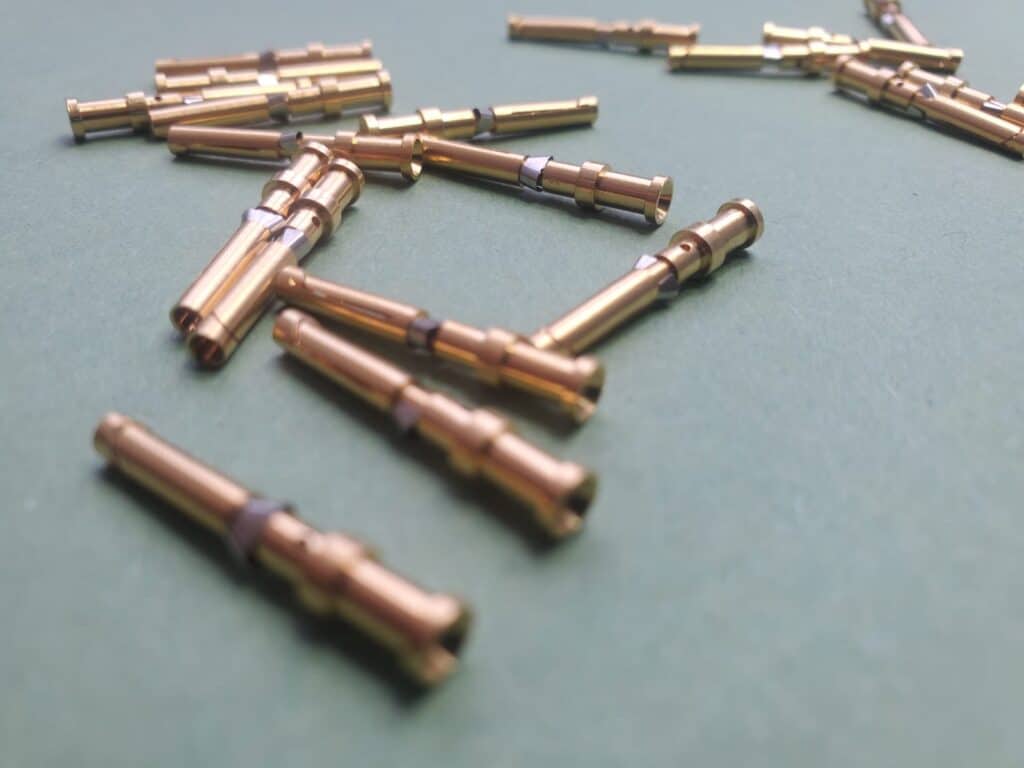

This part is an ILME Contact Pin:

It is Female.

It is Gold Plated, for Optimal Conductivity and Anti-Corrosion.

It is 10 Amp, used in Plugs & Sockets passing up to 10 Amps of Current.

It is 20 Awg, which stands for American Wire Gauge. Used since 1857, this System indicates wire thickness accommodated by the Contacts & Connectors, with smaller gauge numbers indicating thicker wire accommodation.





Contacts, Connectors, and Crimps

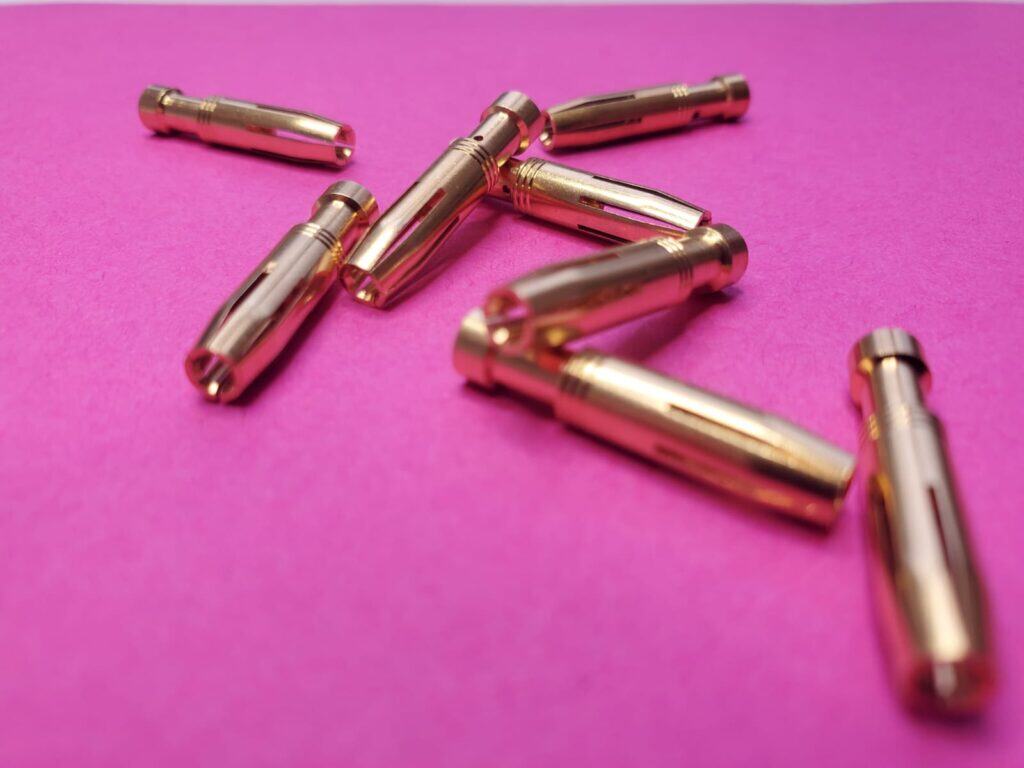

CCFD 2.5

This part is another ILME Contact Pin:

It is also Female.

It is Gold Plated, similarly to the previous example.

It is 16 Amp, used in Plugs & Sockets passing up to 16 Amps of Current safely.

It is 14 Awg, which means that it can house wires thicker than the previous example.

Contacts, Connectors, and Crimps

CCFA 0.5 & CCMA 0.5

By this slide, if you've an eagle eye and an inquisitive mind, you may have a question along these lines:

Hang on a minute! Those Contacts look different, but they're both Female?

Are you sure? Did you mean to say that CDFD 0.5 is Male, and CCFD 2.5 is Female?

That would make more sense, as the latter appears to be a Receptacle, whilst the first appears to be a Pin?

Did you have such a question to ask? Are you like I am?

Male & Female in the context of Contacts used in the production of Plugs & Sockets, refers to the final destination of the Contacts - i.e. it hasn't anything to do with how they appear to the naked eye, rather it refers to whether or not the Contacts are to be fitted into a Plug or a Socket.

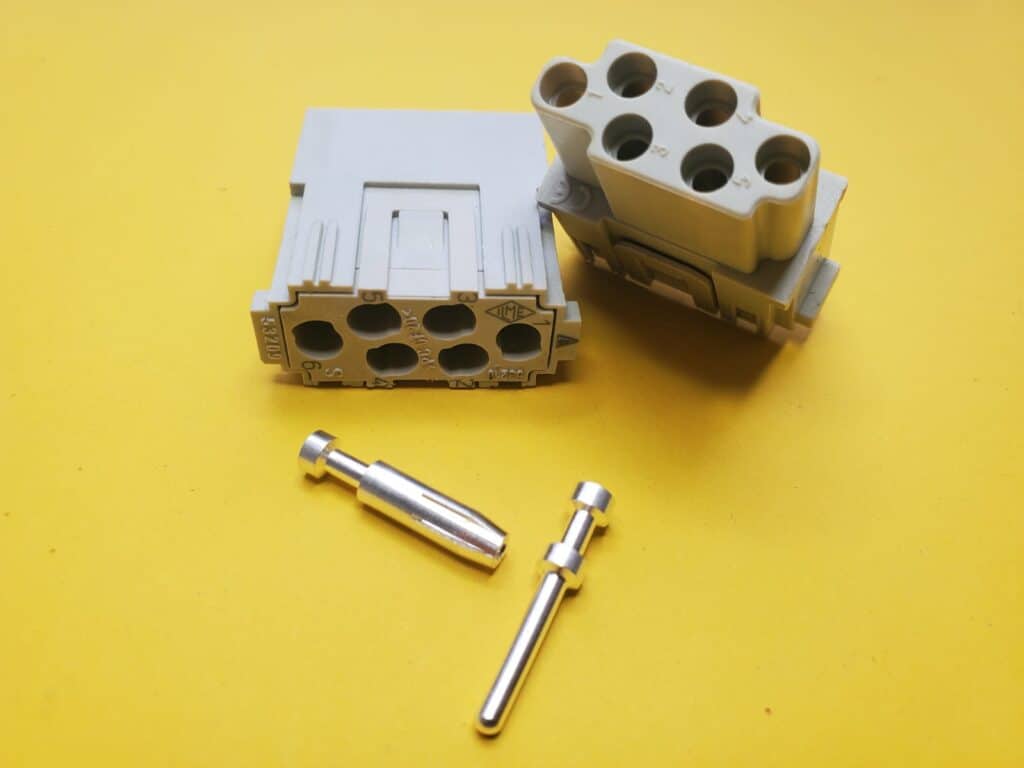

By way of example, this image shows a CCFA 0.5, a CCMA 0.5, a Plug, and a Socket.



Contacts, Connectors, and Crimps

Contacts, Plug, and Socket

At 2M, Plugs & Sockets are handmade on a continual basis for bespoke Control Panel and Cable Builds. The time it takes to build a Plug & Socket depends on it's complexity.
Discuss your Enquiries & Specifications so we can get you booked into our Diary & Workshop Production Runs:
To round up this Case Study, the is an overview of this rather more straightforward-looking example for laymen eyes:
A Female Contact, a Male Contact, a Female Socket, and a Male Plug.
In summary, the sex of your Contacts in the Workshop may be misleading to your naked eye, but the sex of the Plug is always Male, and the sex of the Socket is always Female. Experience will strengthen your recognition, recall, and muscle memory in Automation, as with any other Industry.
